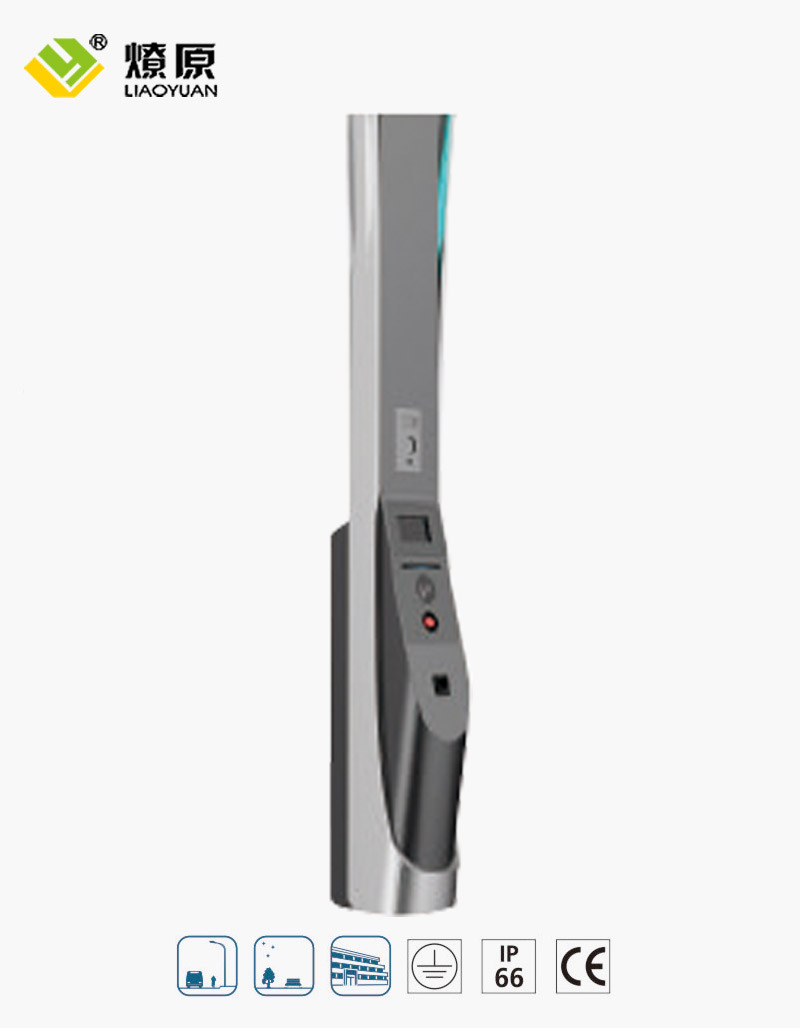

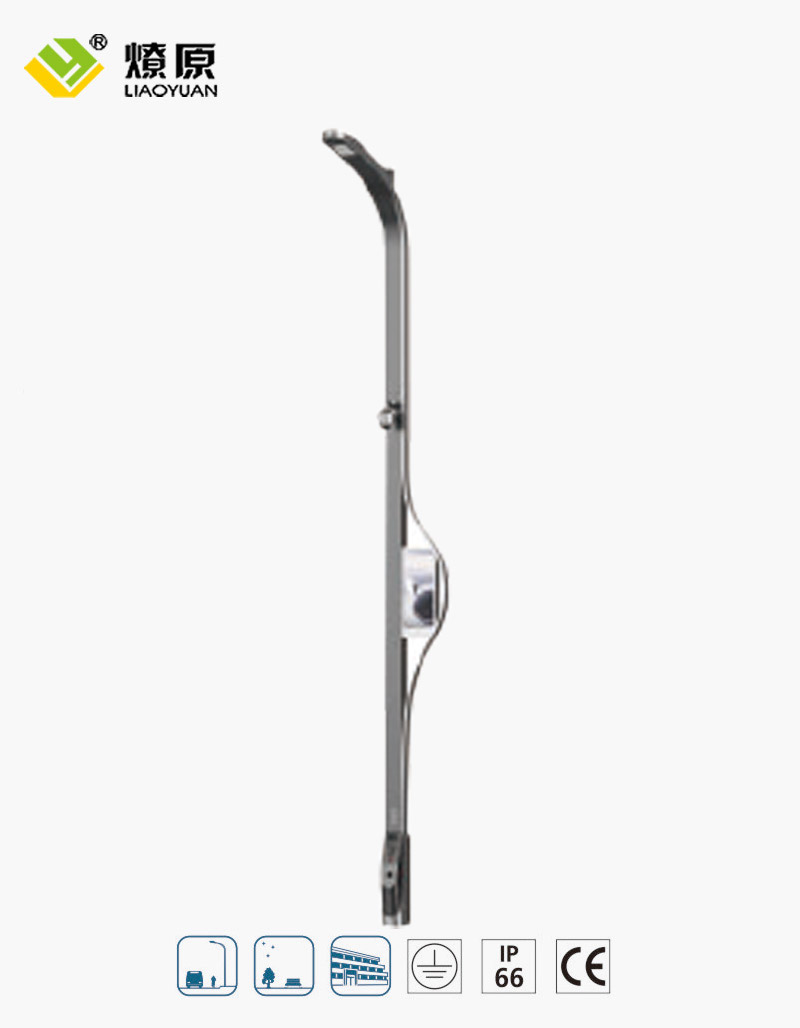

LYZ-03 Waterproof Smart Street Light Pole

About Ningbo Liaoyuan Lighting Group Co.,ltd

LYZ-03

City monitoring
Pixel 200W   focal length 4. 8-115mm, 23 times optical   Operating temperature 30℃+65℃
Video compression H265/H. 264/MJPEG power supply DC12V 18W max Working humidity Temperature less than 90%
Resolution and frame rate Support up to 1920*1080@ 30fps HD picture Vertical range -15° ~90° (automatic flip) Protection level 1P66: TVS 4000V lightning protection, anti-surge, anti-surge, in line with GB/T17626.54 standard
Minimum illumination Color 0.005Lux @(F1.6, AGC ON) Horizontal range 360° monitoring without dead ends Local storage Maximum support 256G
Digital zoom 16 times Infrared irradiation distance 100 metres

Smart lighting
LED type High power 3535/5050, medium power 3030   Power factor >0.9   Service life >30000h
Rated power string 60W-300W Main light color temperature 3000~4500 Working temperature -20℃~+50℃
Input voltage AC220±20% Color rendering index ≥Ra70≥ Working environment humidity 10%~90%
Frequency Range 50/60Hz Main lighting effect (Lm/ 130 Protection level IP65

Wireless WIFI
wireless technology 802.11N/2T2R 300M MI MO   Operating mode Gateway mode/AP mode/Universal relay mode   Working environment humidity 5%~90%
working frequency 2. 4GHz Blue radius 150 meters Power consumption 8W
Transmission speed string 300mbps Maximum standby 32 days power supply Support 24VPOE power supply
Flash memory 16M flash memory 128M large memory Working ring block temperature -20℃~+50℃ Features Wireless connections

Environmental monitoring
Meteorological elements Wind speed. Wind direction, temperature, humidity, pressure PM10, PM2.5   Operating Voltage Dc12~30V (Power consumption: 25mA@12V)   Multiple transmission RS485
PW2.5 accuracy ±10‰0-500ug/m PM10 accuracy ± 10 ‰ @ 0-1000ug / m 3

City radio
power 30W   Noise ratio ≥70dB   power supply DC24V
Protocol ARP, UDP, TcP/iP, IGMP audio format WAV (8K.22K). MP3 (32kbps-192kbps) Operating temperature -10℃~+70℃
Audio input sensitivity 0.775V Sampling Rate 8K Working humidity 10%~90%
Frequency response 50Hz-15KHz(±3B) Harmonic distortion ≤0.3X

Information Release
Module resolution P3. 84   Maximum power 800W/unit   Protection level IP65
Display size 800mm*1500mm Average power 240W/set Service life 100000h
Overall size 900mm*1700mm*90mm Input power AC100-240V/50-60Hz Operating temperature WC ~ + 5 (TC
brightness 7000CD/m2 way to control 3G.4G/WIFI remote cluster control Working humidity 10%~90%

One key alarm
Network protocol TCP/IP UDP. I GMP. RTP   MIC input sensitivity 10mV   Working humidity 10%~90%
Audio sampling rate 16K-48KHZ Signal to noise ratio ≥90dB Working voltage DC 14V
Broadcast audio format MP3. WAV camera 500W pixels Power consumption 6W
Audio mode 16 stereo CD sound quality Operating temperature -20℃+60℃

Smart charging pile
rated power 7kw   Start method Swipe card. AP scan code   Working environment humidity 10%~90%
charging method AC single charge Protection level ≥IP54 appropriate types new energy vehicles
Input voltage Ac220V±10% Working environment -30℃~+50℃

Liaoyuan Group is leading LYZ-03 Waterproof Smart Street Light Pole company and LYZ-03 Waterproof Smart Street Light Pole suppliers in China. Liaoyuan has been certificated of ISO9001 QMS, ISO 14001 EMS and OHSMS, and Liaoyuan also passed a series of authoritative certification including GS, CE, ENEC, UL. You can wholesale LYZ-03 Waterproof Smart Street Light Pole easily from us.
