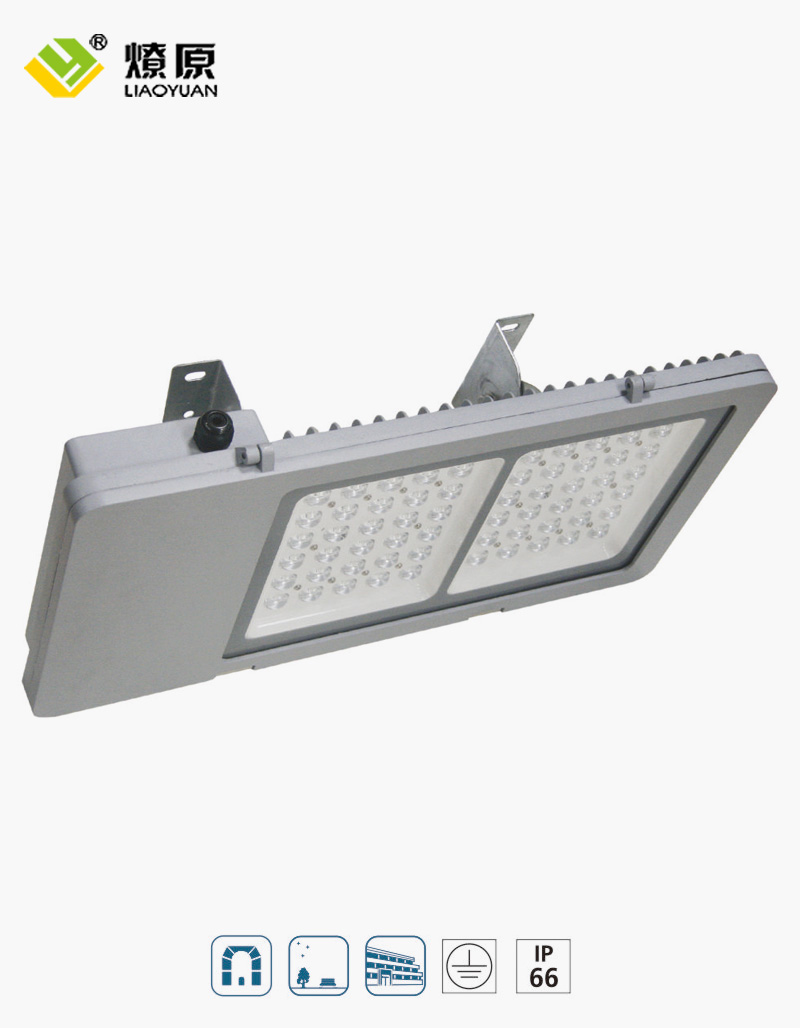

NBS-LED-12 High Press Die-cast LED Tunnel Light

Configuration Data:

Application: Tunnel

Main Features:

Luminous Efficacy is more than 120 Im/W.

High pressure diecasting aluminum housing.

Closure screen in flat tempered clear glass.

Unique optical design creates consistent distribution and scalability.

Integrated surge protection device.

Technical Data:

IP66 protection degree.

Insulation class:Ⅰ

Power supply:120-277V (50/60Hz)

LED current:530/700/1050mA

Power Factor:＞0.95

Working Ambient:-35℃to+45℃

Life Span:＞50,000 hrs.

CRI:Ra≥70

CCT:Warm White (3000 - 3700K),Neutral White (3700 - 5000K) and Cool White (5000 - 6500K)

Net Weight (Max. Watt):6.5kg

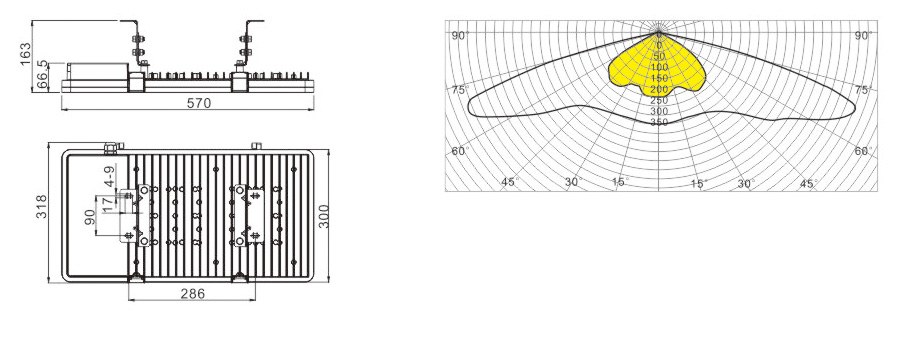

Product Dimensions(mm)/Polar Diagram

Liaoyuan Group is leading NBS-LED-12 High Press Die-cast LED Tunnel Light company and NBS-LED-12 High Press Die-cast LED Tunnel Light suppliers in China. Liaoyuan has been certificated of ISO9001 QMS, ISO 14001 EMS and OHSMS, and Liaoyuan also passed a series of authoritative certification including GS, CE, ENEC, UL. You can wholesale NBS-LED-12 High Press Die-cast LED Tunnel Light easily from us.
