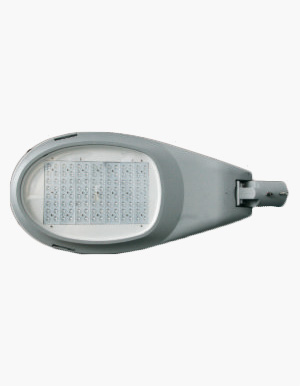

NBDD-LED-600A Led Street Parking Lot Light

About Ningbo Liaoyuan Lighting Group Co.,ltd

NBDD-LED-600A

Configuration Data:



Number of LEDs

LED Current

Power Consumpt

Nominal Initial Flux*

64

530mA

100W

11500lm

700mA

140W

15400lm

1050mA

200W

20000lm

80

530mA

150W

16500lm

700mA

180W

19800lm

1050mA

250W

25000lm

96

530mA

150W

13500lm

700mA

200W

22000lm

112

530mA

180W

20700lm

700mA

250W

27500lm





Application: Street

Main Features:



Luminaire Efficiency up to 120lm/Wattage

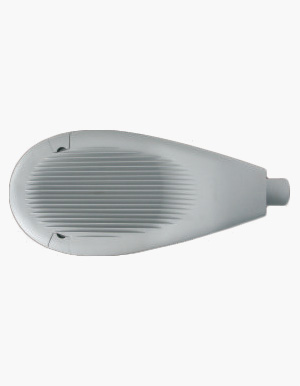

Strenmlined die-casting aluminum body

Closure screen in flat tempered glass cover

Integrated surge protection device

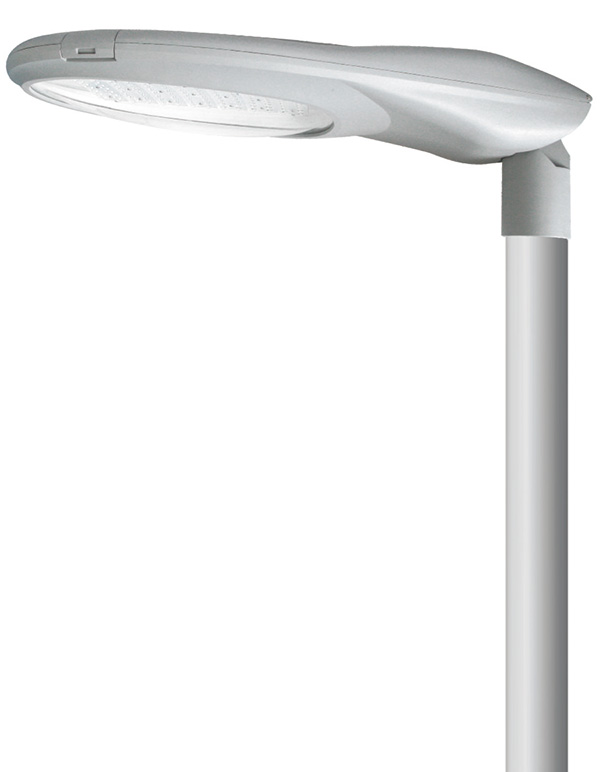

Two fixing system:Post top or arm mounting



Technical Data:



IP66 protection degree

Insulation class:Ⅰ

Power supply:120-277V- 50/60Hz

LED current:530/700/1050mA

Power Factor:>0.95

Working Ambient: -35℃to +45℃

Life Span:>50,000hrs

CRI:Ra>70

CCT:Warm White ( 3000-3700K)

Neutral White(3700-5000K) and Cool White ( 5000-6500K)

Net Weight (Max.Wattage):13.5kg

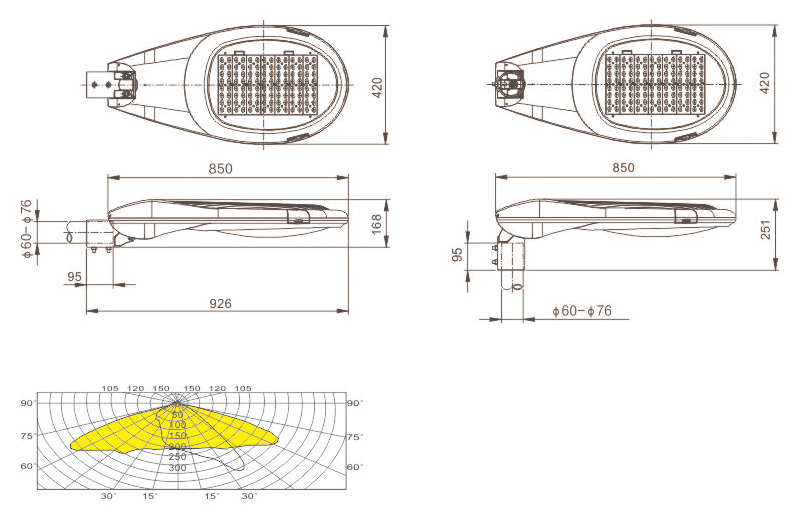

Product Dimensions(mm)/Polar Diagram
