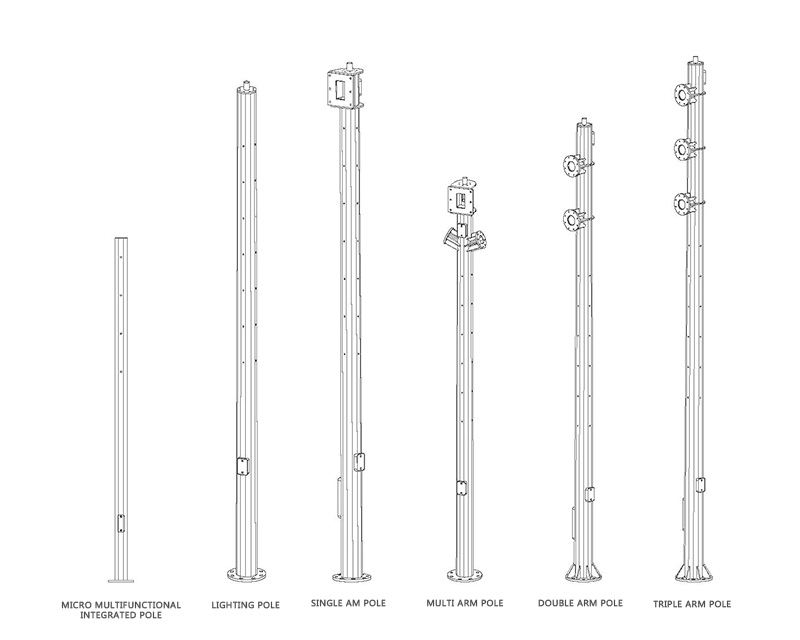

Data table of multifunctional integrated pole
Name |
Max. Bot A/F (mm) |
Max. Top A/F (mm) |
THK(mm) |
Hight(mm) |
Remarks |
Micro pole |
160 |
160 |
4 |
2.5-6.0 |
Octagonal |
Micro pole |
160 |
160 |
5 |
2.5-6.0 |
Octagonal |
Lighting pole |
240 |
240 |
4 |
2.5-6.5 |
12-sided |
Lighting pole |
240 |
240 |
5 |
3.5-7.0 |
12-sided |
Single arm pole |
270 |
240 |
5 |
5.5-7.0 |
12-sided |
Single arm pole |
270 |
240 |
6 |
5.5-7.0 |
12-sided |
Multi arm pole |
270 |
240 |
8 |
5.5-7.0 |
12-sided |
Multi arm pole |
270 |
240 |
10 |
5.5-7.0 |
12-sided |
Double arm pole |
290 |
240 |
6 |
6.5-8.0 |
12-sided |
Double arm pole |
290 |
240 |
8 |
6.5-8.0 |
12-sided |
Double arm pole |
290 |
240 |
10 |
6.5-8.0 |
12-sided |
Triple arm pole |
310 |
240 |
8 |
6.5-S.5 |
12-sided |
Triple arm pole |
310 |
240 |
10 |
6.5-8.S |
12-sided |
Triple arm pole |
310 |
240 |
12 |
6-5 -8.5 |
12-sided |
Data table of Cross-arm
Name |
Max. Bot A/F (mm) |
Max. Top A/F (mm) |
THK(mm) |
Remarks |
3mCross-arm |
139 |
111 |
4 |
Octagonal |
3mCross-arm |
139 |
111 |
5 |
Octagonal |
3.5mCross-arm |
139 |
111 |
4 |
Octagonal |
3.5mCross-arm |
139 |
111 |
5 |
Octagonal |
4mCross-arm |
120 |
120 |
4 |
Octagonal |
4mCross-arm |
140 |
140 |
5 |
Octagonal |
4mCross-arm |
185 |
111 |
5 |
Octagonal |
4mCross-arm |
185 |
111 |
5 |
Octagonal |
5mCross-arm |
185 |
111 |
5 |
Octagonal |
5mCross-arm |
185 |
111 |
6 |
Octagonal |
5mCross-arm |
140 |
140 |
8 |
Octagonal |
6mCross-arm |
185 |
111 |
5 |
Octagonal |
6mCross-arm |
140 |
140 |
8 |
Octagonal |
7mCross-arm |
185 |
111 |
6 |
Octagonal |
7mCross-arm |
160 |
160 |
8 |
Octagonal |
8mCross-arm |
213 |
111 |
6 |
Octagonal |
10mCross-arm |
222 |
111 |
8 |
Octagonal |
Data table of Decorative Cross-arm
Name |
Max. Bot A/F (mm) |
Max. Top A/F (mm) |
THK(mm) |
Remarks |
3mCross-arm |
139 |
111 |
5 |
Octagonal |
3mCross-arm |
185 |
111 |
5 |
Octagonal |
3.5mCross-arm |
139 |
111 |
5 |
Octagonal |
3.5mCross-arm |
185 |
111 |
5 |
Octagonal |
4mCross-arm |
139 |
111 |
5 |
Octagonal |
4mCross-arm |
185 |
111 |
5 |
Octagonal |
5mCross-arm |
185 |
111 |
5 |
Octagonal |
Data table of auxiliary pole
Name |
Max. Bot A/F (mm) |
Max. Top A/F (mm) |
H(mm) |
Remarks |
Auxiliary pole |
160 |
160 |
1.0-6.0 |
Aluminum profile |

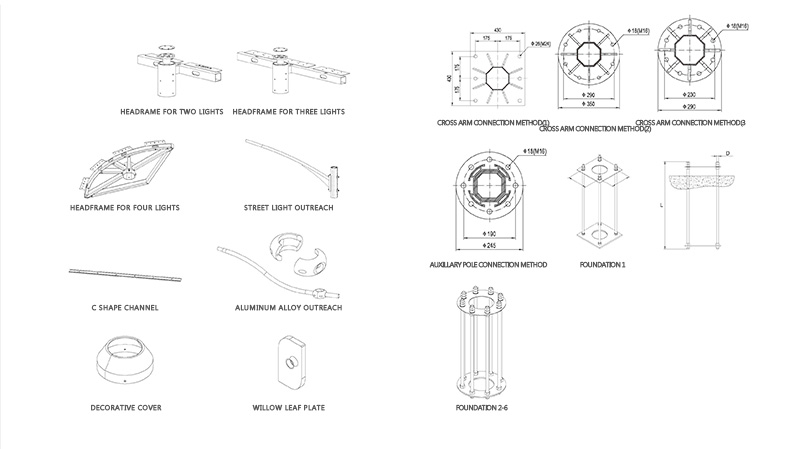

Data table of Foundation Assembly
Name |
Bolt specification(mm) |
Length(mm) |
Quantity(mm) |
PCD(mm) |
Material |
Foundation 1 |
M20 |
800 |
4 |
240*240 |
45#steel |
Foundation 2 |
M20 |
1100 |
4 |
Φ260 |
45#steel |
Foundation 3 |
M20 |
1100 |
8 |
Φ410 |
45#steel |
Foundation 4 |
M20 |
1100 |
8 |
Φ460 |
45#steel |
Foundation 5 |
M20 |
1300 |
8 |
Φ460 |
45#steel |
Foundation 6 |
M20 |
1500 |
8 |
Φ480 |
45#steel |

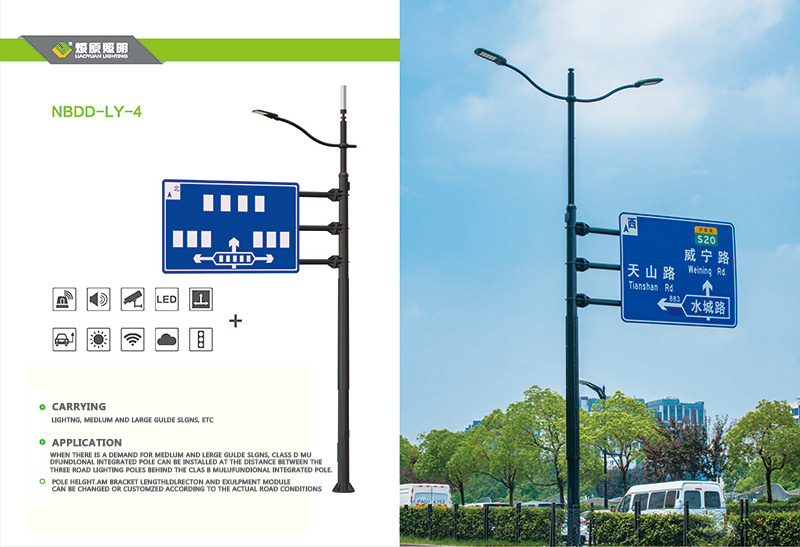

Liaoyuan Group is leading NBDD-LY-4 Multiple Crossing Sign Traffic Light Pole company and NBDD-LY-4 Multiple Crossing Sign Traffic Light Pole suppliers in China. Liaoyuan has been certificated of ISO9001 QMS, ISO 14001 EMS and OHSMS, and Liaoyuan also passed a series of authoritative certification including GS, CE, ENEC, UL. You can wholesale NBDD-LY-4 Multiple Crossing Sign Traffic Light Pole easily from us.
Company Profile
About Ningbo Liaoyuan
Company adhering to build a ”century Liaoyuan",company constructs the core competitiveness in the lighting industry,by recruiting talents,,creating international brands,and inplementing the strategy of open innovation.etc.And also our company formed a strategic alliance with Cree (United States),Philips(Netherlands) and Samsung(Korea),in order to being the world's green lighting product development and prodction base.
Company Profile
Firstly,we will do the inspection after every process.For the finished products,we will do 100% inspection according to the customers’ requirements and the international standard.
We then have advanced and complete top-of-the-line inspection equipment in our industry: spectrum analyzer, metallographic microscope, universal tensile testing machine, low temperature impact testing machine, X-ray inspection machine, magnetic particle inspection machine, ultrasonic flaw detector, CMM, Measuring instrument and so on. The above-mentioned equipment can fully guarantee to provide customers with high-precision finished parts of finished products, and at the same time, it can meet the customers' all requirements of physical and chemical properties, non-destructive testing and high-precision geometric size testing.
Our company is a brand with a long history of manufacturers, followed by Beijing Rongjing design company, Germany, Germany, Sola Ltd. as a European-oriented marketing and technology services company, we also have our own international trade sector, we produce Since the sale.
Yes, we do custom products, we develop and produce products based on drawings or samples provided by our customers. Or design ideas to the customer to solve the overall smart city design
