The Lighting Monopole - Is it Worth the Price?

If you're considering purchasing a lighting monopole, you may be wondering whether they're worth the price. The answer is yes, but only if you know how to choose the best one. Here are some things to consider when choosing a lighting monopole. Firstly, you should know the materials. High quality steel, very thick steel panel, and stainless bolts ensure stability and safety. Then, you should determine whether or not the lighting monopole you're planning on buying has enough strength to support it.

In addition to its aesthetic appeal, the Lighting Monopole provides great functionality for city streets, roundabouts, large parking lots, squares, and more. The new, innovative design of this solar-powered streetlight incorporates the latest developments in this field. The top cylinder, which contains the Ningbo Liaoyuan Municipal Engineering Co., Ltd. cladding, delivers illumination for street lighting. The monopole's sleek, modern design is sure to draw attention, and the lighting is highly visible from far away.

In terms of installation, permanent lighting monopoles are permanently mounted on a vertical pole and a foundation. Signage may be displayed on the monopole in fabric or paper. Most monopoles feature illuminated LED panels mounted to a vertical steel frame. The signage may be replaced regularly. In some cases, the monopole may be used for telecommunication or utility, or security. In all cases, however, the lighting monopole must comply with local, state, and federal codes.

Typical lighting monopoles are constructed from galvanized steel. They are available with a dodecagonal shaft and can reach heights of more than 100 feet. Each mast has a lift lug accessible through a hand hole opening. Depending on the structural design, the lighting monopole can be installed in two or twelve-meter diameter buildings. There are many different types of monopoles, but a typical monopole will accommodate up to 12 luminaires with 400 to 1,000-watt capacity.

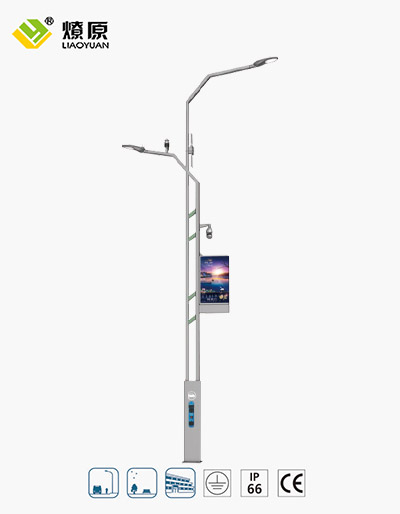

LYZ-08 Galvanized Smart Street Light Poles

City monitoring
Pixel	200W		focal length	4. 8-115mm, 23 times optical		Operating temperature	30℃+65℃
Video compression	H265/H. 264/MJPEG		power supply	DC12V 18W max		Working humidity	Temperature less than 90%
Resolution and frame rate	Support up to 1920*1080@ 30fps HD picture		Vertical range	-15° ~90° (automatic flip)		Protection level	1P66: TVS 4000V lightning protection, anti-surge, anti-surge, in line with GB/T17626.54 standard
Minimum illumination	Color 0.005Lux @(F1.6, AGC ON)		Horizontal range	360° monitoring without dead ends		Local storage	Maximum support 256G
Digital zoom	16 times		Infrared irradiation distance	100 metres
Smart lighting
LED type	High power 3535/5050, medium power 3030		Power factor	>0.9		Service life	>30000h
Rated power string	60W-300W		Main light color temperature	3000~4500		Working temperature	-20℃~+50℃
Input voltage	AC220±20%		Color rendering index	≥Ra70≥		Working environment humidity	10%~90%
Frequency Range	50/60Hz		Main lighting effect (Lm/	130		Protection level	IP65
Wireless WIFI
wireless technology	802.11N/2T2R 300M MI MO		Operating mode	Gateway mode/AP mode/Universal relay mode		Working environment humidity	5%~90%
working frequency	2. 4GHz		Blue radius	150 meters		Power consumption	8W
Transmission speed string	300mbps		Maximum standby	32 days		power supply	Support 24VPOE power supply
Flash memory	16M flash memory 128M large memory		Working ring block temperature	-20℃~+50℃		Features	Wireless connections
Environmental monitoring
Meteorological elements	Wind speed. Wind direction, temperature, humidity, pressure PM10, PM2.5		Operating Voltage	Dc12~30V (Power consumption: 25mA@12V)		Multiple transmission	RS485
PW2.5 accuracy	±10‰0-500ug/m		PM10 accuracy	± 10 ‰ @ 0-1000ug / m 3
City radio
power	30W		Noise ratio	≥70dB		power supply	DC24V
Protocol	ARP, UDP, TcP/iP， IGMP		audio format	WAV (8K.22K). MP3 (32kbps-192kbps)		Operating temperature	-10℃~+70℃
Audio input sensitivity	0.775V		Sampling Rate	8K		Working humidity	10%~90%
Frequency response	50Hz-15KHz(±3B)		Harmonic distortion	≤0.3X
Information Release
Module resolution	P3. 84		Maximum power	800W/unit		Protection level	IP65
Display size	800mm*1500mm		Average power	240W/set		Service life	100000h
Overall size	900mm*1700mm*90mm		Input power	AC100-240V/50-60Hz		Operating temperature	WC ~ + 5 (TC
brightness	7000CD/m2		way to control	3G.4G/WIFI remote cluster control		Working humidity	10%~90%
One key alarm
Network protocol	TCP/IP UDP. I GMP. RTP		MIC input sensitivity	10mV		Working humidity	10%~90%
Audio sampling rate	16K-48KHZ		Signal to noise ratio	≥90dB		Working voltage	DC 14V
Broadcast audio format	MP3. WAV		camera	500W pixels		Power consumption	6W
Audio mode	16 stereo CD sound quality		Operating temperature	-20℃+60℃
Smart charging pile
rated power	7kw		Start method	Swipe card. AP scan code		Working environment humidity	10%~90%
charging method	AC single charge		Protection level	≥IP54		appropriate types	new energy vehicles
Input voltage	Ac220V±10%		Working environment	-30℃~+50℃
