Summary:A Multifunctional Pole is an innovative lighting system that integrates lighting, sound, security, and surveillance applications into a sing...
A Multifunctional Pole is an innovative lighting system that integrates lighting, sound, security, and surveillance applications into a single pole. The Multifunctional Pole features a track system for easy movement of different accessories along the pole length. This flexible design enables the placement of signage, banners, CCTV cameras, and IoT applications in a variety of locations.
With a wide range of sizes and options, a multifunctional light pole is perfect for both a standalone application or as an end of the line for a Smart City. As the technology for these types of poles evolves, it's important to have a versatile design that can accommodate new technologies and accessories. It's also possible to create custom designs to meet specific requirements.
Designed to last, a multifunctional light pole can be made with a wide range of lighting elements, including LED spots and RGBW - DMX controlled. It can be customized with various window designs, and the top element can be equipped with a WIFI access point. Integrated speakers are available in several options.
The Multifunctional Pole is constructed from marine grade aluminium. This is a durable material that is fully recyclable. These poles are highly efficient and ideal for a variety of applications. They are designed to meet the structural demands of AS/NZS 1170.2:20 Structural Design Actions.
Aluminium Pole is a multifunctional pole system that combines an advanced bracketing system with a universal design to provide a future-proofed solution for a wide variety of applications. This allows for a number of different applications and helps to ensure that the entire design will not be damaged when changing applications.
In addition to its flexible mounting system, the Multifunctional Pole is compatible with a wide range of track arm kits. For example, the UA Aluminium Pole is available with an optional horizontal banner arm that can be mounted vertically along the pole. There is also an option for a ring buoy, which is placed on the top of the pole. An antenna is mounted behind the window of the top element, which allows for a 270-degree view.
One of the most common applications for a multifunctional light pole is as an entrance to a Smart City. This is where the light source can be monitored in real-time, and dimmed to match traffic flow and weather conditions. Alternatively, a smart pole can serve as a data terminal, data collection point, and multimedia information screen.
Several other applications are possible on a multifunctional light pole, such as an intelligent transportation system, a multi-service entrance, a wireless city, and more. Because of their innovative features and adaptability, multifunctional light poles can help to promote intelligent lighting, networking capabilities, and environmental protection.

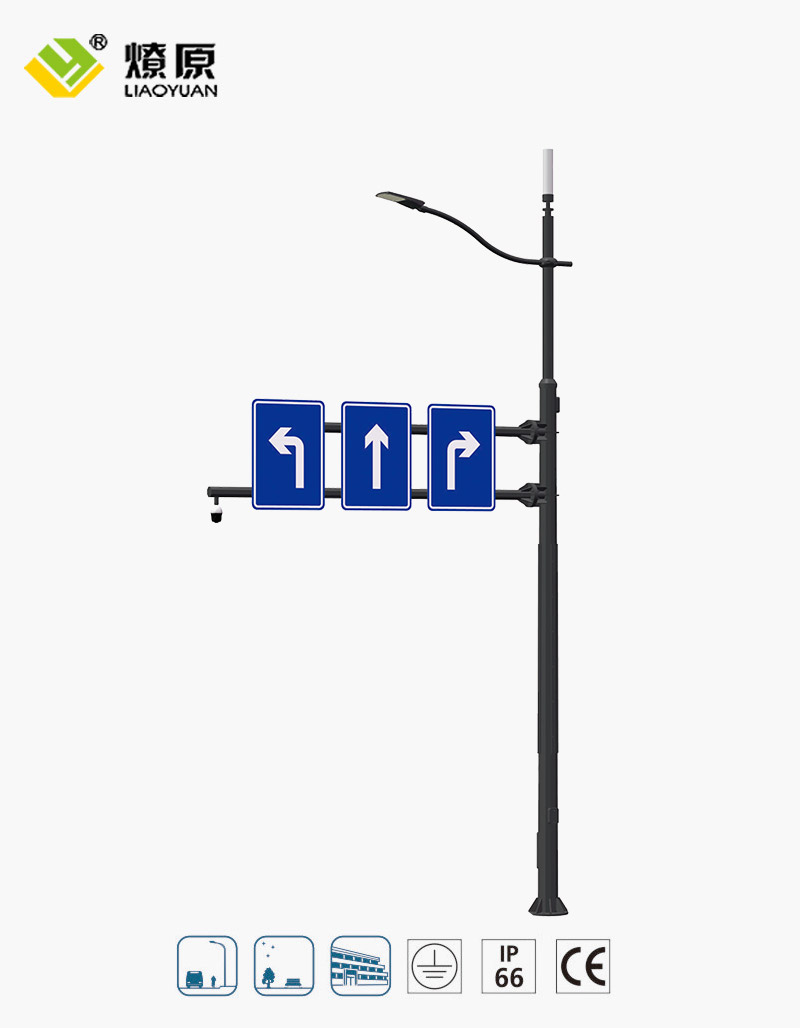

NBDD-LY-3 Multi-function Traffic Sign Light Pole
|
Name
|
Max. Bot A/F （mm）
|
Max. Top A/F （mm）
|
THK(mm)
|
Hight(mm)
|
Remarks
|
|
Micro pole
|
160
|
160
|
4
|
2.5-6.0
|
Octagonal
|
|
Micro pole
|
160
|
160
|
5
|
2.5-6.0
|
Octagonal
|
|
Lighting pole
|
240
|
240
|
4
|
2.5-6.5
|
12-sided
|
|
Lighting pole
|
240
|
240
|
5
|
3.5-7.0
|
12-sided
|
|
Single arm pole
|
270
|
240
|
5
|
5.5-7.0
|
12-sided
|
|
Single arm pole
|
270
|
240
|
6
|
5.5-7.0
|
12-sided
|
|
Multi arm pole
|
270
|
240
|
8
|
5.5-7.0
|
12-sided
|
|
Multi arm pole
|
270
|
240
|
10
|
5.5-7.0
|
12-sided
|
|
Double arm pole
|
290
|
240
|
6
|
6.5-8.0
|
12-sided
|
|
Double arm pole
|
290
|
240
|
8
|
6.5-8.0
|
12-sided
|
|
Double arm pole
|
290
|
240
|
10
|
6.5-8.0
|
12-sided
|
|
Triple arm pole
|
310
|
240
|
8
|
6.5-S.5
|
12-sided
|
|
Triple arm pole
|
310
|
240
|
10
|
6.5-8.S
|
12-sided
|
|
Triple arm pole
|
310
|
240
|
12
|
6-5 -8.5
|
12-sided
|
